Task 4: Object Storage

Task goals:

Create and configure Public Object Storage container
Create and configure Protected Object Storage container
Upload test files to Public container by using CLI
Upload test files to Protected container by using CLI

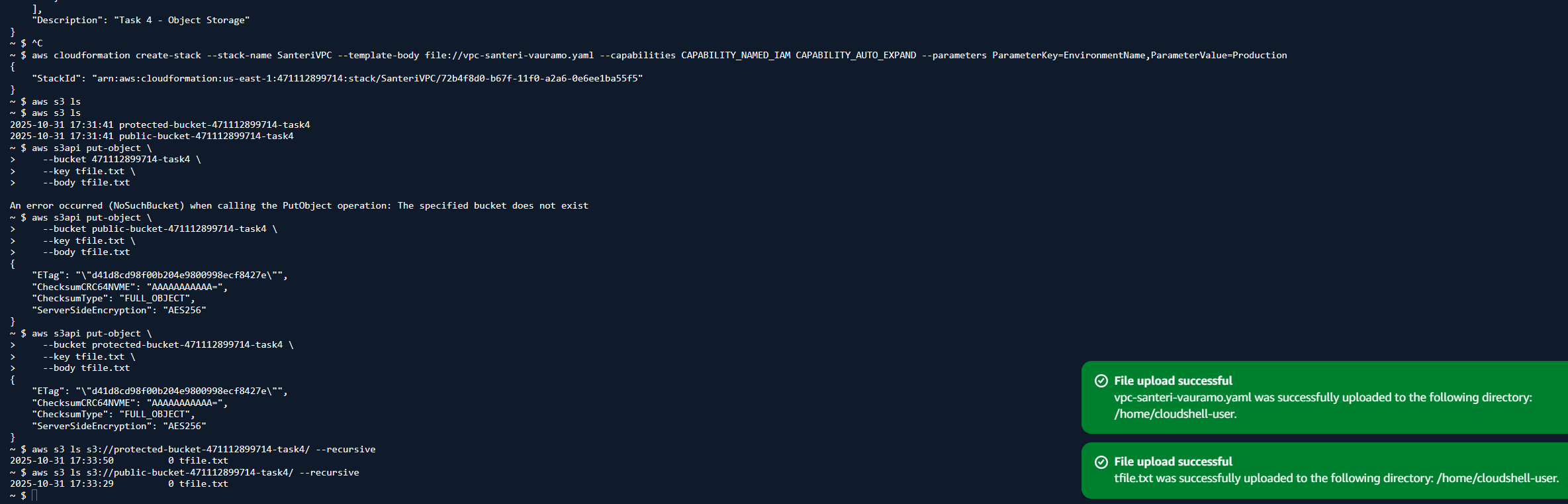

Include screenshots about Public and Protected containers with test files to task README.txt

Upload the CloudFormation template “vpc-santeri-vauramo.yaml” and “tfile.txt” to AWS Sandbox CloudShell.

Run the following CLI commands to validate and create the stack:

aws cloudformation validate-template --template-body file://vpc-santeri-vauramo.yaml

aws cloudformation create-stack --stack-name SanteriVPC --template-body file://vpc-santeri-vauramo.yaml --capabilities CAPABILITY_NAMED_IAM CAPABILITY_AUTO_EXPAND --parameters ParameterKey=EnvironmentName,ParameterValue=Production

Check the names of the buckets (bucket names are randomized “protected-bucket-xxxxxxxxx-task4”) to tackle conflicting names

aws s3 ls

Copy uploaded tfile.txt with api method:

aws s3api put-object \
    --bucket BUCKET_NAME_HERE \
    --key tfile.txt \
    --body tfile.txt

Another, easier method

aws s3 cp tfile.txt s3://BUCKET_NAME_HERE/my-dir/

Upload to protected bucket using the access point ARN

aws s3 cp tfile.txt s3://arn:aws:s3:us-east-1:ACCOUNT-ID:accesspoint/S3BucketProtectedAccessPoint/

Check if the files are actually in the buckets!

aws s3 ls s3://BUCKET_NAME_HERE/ --recursive

In my test, the bucket names became:

protected-bucket-471112899714-task4

public-bucket-471112899714-task4

The commands in my case:

aws s3api put-object \
    --bucket public-bucket-471112899714-task4 \
    --key tfile.txt \
    --body tfile.txt
aws s3api put-object \
    --bucket protected-bucket-471112899714-task4 \
    --key tfile.txt \
    --body tfile.txt
aws s3 ls s3://protected-bucket-471112899714-task4/ --recursive
aws s3 ls s3://public-bucket-471112899714-task4/ --recursive

The template file:

AWSTemplateFormatVersion: '2010-09-09'
Description: Task 4 - Object Storage

Parameters:
  EnvironmentName:
    Description: VPC Networking
    Type: String

  VpcCIDR:
    Type: String
    Default: 10.25.36.0/22

  PublicSubnet1CIDR:
    Type: String
    Default: 10.25.36.0/24

  Course:
    Type: String
    Default: 'Cloud Architectures - AWS'

  ImplementationID:
    Type: String
    Default: 'ICI010AS3AE-3003'

  Task:
    Type: String
    Default: 'Task 4: Object Storage'

  Learner:
    Type: String
    Default: 'Santeri Vauramo'

  DeploymentType:
    Type: String
    Default: 'Console'

Resources:
  SanteriVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCIDR
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: InternetGateway
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref SanteriVPC
      InternetGatewayId: !Ref InternetGateway

  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 0, !GetAZs '' ]
      CidrBlock: !Ref PublicSubnet1CIDR
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Subnet (AZ1)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Routes

  DefaultPublicRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGatewayAttachment
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet1

  S3BucketPublic:
    Type: 'AWS::S3::Bucket'
    DeletionPolicy: Delete
    Properties:
      BucketName: !Sub "public-bucket-${AWS::AccountId}-task4"
      PublicAccessBlockConfiguration:
        BlockPublicAcls: false
        BlockPublicPolicy: false
        IgnorePublicAcls: false
        RestrictPublicBuckets: false
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PublicBucketPolicy:
    Type: 'AWS::S3::BucketPolicy'
    Properties:
      Bucket: !Ref 'S3BucketPublic'
      PolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal: '*'
            Action: 's3:GetObject'
            Resource: !Sub '${S3BucketPublic.Arn}/*'

  S3BucketProtected:
    Type: 'AWS::S3::Bucket'
    DeletionPolicy: Delete
    Properties:
      BucketName: !Sub "protected-bucket-${AWS::AccountId}-task4"
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

Outputs:
  VPC:
    Description: A reference to the created VPC
    Value: !Ref SanteriVPC

  PublicSubnet1:
    Description: A reference to the public subnet in the 1st Availability Zone
    Value: !Ref PublicSubnet1

  PublicBucket:
    Description: Public S3 bucket
    Value: !Ref S3BucketPublic

  ProtectedBucket:
    Description: Protected S3 bucket
    Value: !Ref S3BucketProtected

This document may be copied and modified in accordance with the GNU General Public License (version 2 or later). http://www.gnu.org/licenses/gpl.html

Based on Public Cloud Solution Architect course by Pekka Korpi-Tassi 2025.
Project Prep Tasks.

Written by Santeri Vauramo 2025.
