Task 7: VM Provisioning

Task goals:

- Use CLI commands to install application on VM from previous task

- Update VM creation script, to run app install CLI commands as user data

- Test public Internet access to VM and include screenshot about passing test to task README.txt

Upload the CloudFormation template “vpc-santeri-vauramo.yaml” to AWS Learner Lab Cloudshell
Run the following CLI commands to create stack and keys, and hide the key from public:

aws cloudformation validate-template --template-body file://vpc-santeri-vauramo.yaml

aws ec2 create-key-pair --key-name learner-vm-key --query 'KeyMaterial' --output text > learner-vm-key.pem
chmod 400 learner-vm-key.pem
aws cloudformation create-stack --stack-name SanteriVPC --template-body file://vpc-santeri-vauramo.yaml --capabilities CAPABILITY_NAMED_IAM CAPABILITY_AUTO_EXPAND --parameters ParameterKey=KeyName,ParameterValue=learner-vm-key ParameterKey=EnvironmentName,ParameterValue=Production

Check the IP of the EC2 instance by searching by Course tag, or check it out from AWS GUI console

aws ec2 describe-instances \
  --filters "Name=tag:Course,Values=Cloud Architectures - AWS" \
  --query "Reservations[].Instances[].[InstanceId, PublicIpAddress, State.Name]" \
  --output table

Update package list, install apache2, replace test page, give Apache rights to view and execute files, enable Apache on startup, and launch it.
These have been added to the EC2 instances user data. Since user data is run as root, when installing Apache, the permissions will go explicictly to root, so here we give Apache the right permissions for the files:

      UserData: !Base64 |
        #!/bin/bash
        yum update -y
        yum install -y httpd
        echo Replaced testpage Cloud Architectures - AWS - ICI010AS3AE-3003|tee /var/www/html/index.html
        chgrp -R apache /var/www/html/
        chmod -R 750 /var/www/html/
        chmod g+s /var/www/html/ #This makes sure that all future files in here will have the same rights.
        systemctl enable httpd
        systemctl start httpd

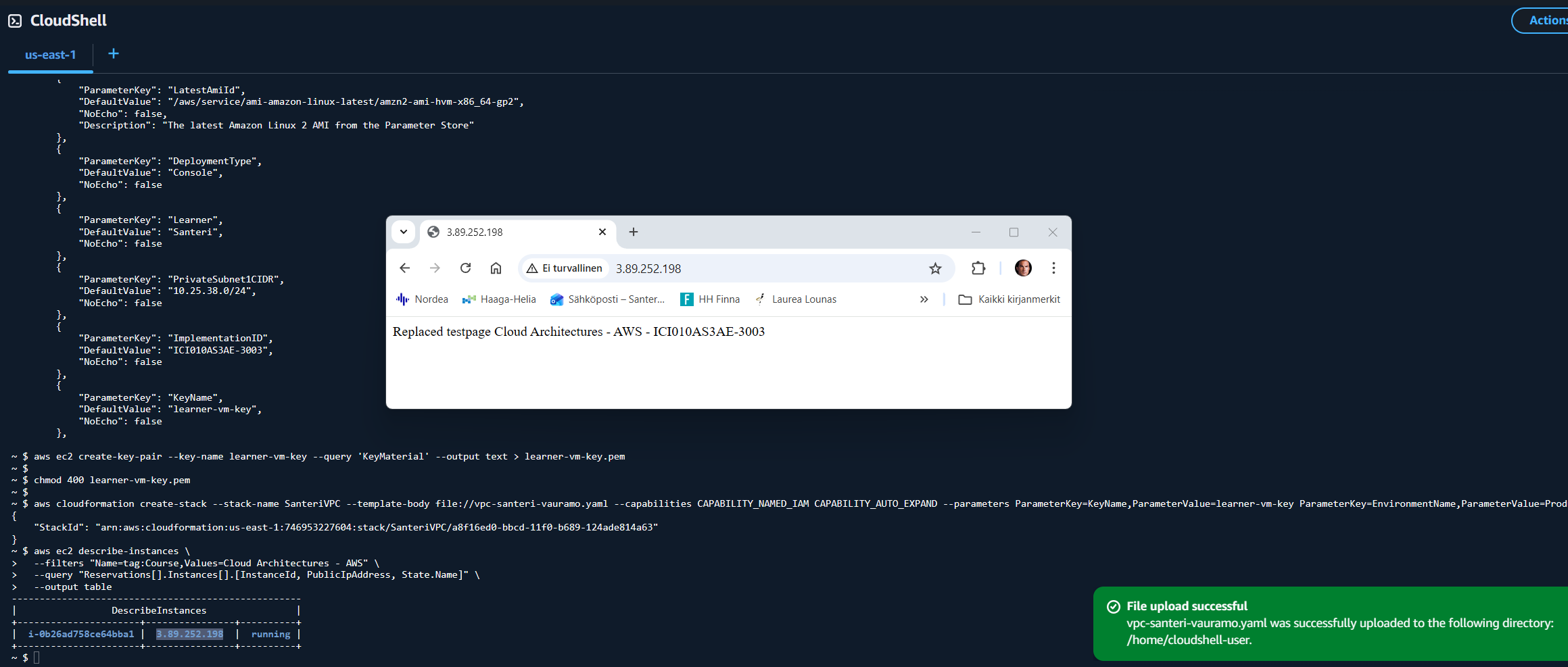

Wait for status checks to complete. Navigate to EC2 ip “http://”instanceIP””, you will see the overwritten test page if all is correct.

The template file:

AWSTemplateFormatVersion: '2010-09-09'
Description:  Task 6

Parameters:
  EnvironmentName:
    Description: VPC Networking
    Type: String

  LatestAmiId:
    Description: The latest Amazon Linux 2 AMI from the Parameter Store
    Type: 'AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>'
    Default: '/aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2'

  VpcCIDR:
    Type: String
    Default: 10.25.36.0/22

  PublicSubnet1CIDR:
    Type: String
    Default: 10.25.36.0/24

  PublicSubnet2CIDR:
    Type: String
    Default: 10.25.37.0/24

  PrivateSubnet1CIDR:
    Type: String
    Default: 10.25.38.0/24

  PrivateSubnet2CIDR:
    Type: String
    Default: 10.25.39.0/24

  Course:
    Type: String
    Default: 'Cloud Architectures - AWS'

  ImplementationID:
    Type: String
    Default: 'ICI010AS3AE-3003'

  Task:
    Type: String
    Default: 'Task 6'

  Learner:
    Type: String
    Default: 'Santeri'

  KeyName:
    Type: AWS::EC2::KeyPair::KeyName
    Default: learner-vm-key

  DeploymentType:
    Type: String
    Default: 'Console'
    AllowedValues:
      - Console
      - CLI
      - IaC
      - IaC with Configuration Management
      - CI/CD
      - CI/CD with Configuration Management
    ConstraintDescription: Type of deployment of the resources

  InstanceType:
    Description: EC2 instance type
    Type: String
    Default: t3.nano
    AllowedValues:
      - t2.nano
      - t2.micro
      - t2.small
      - t3.nano
      - t3.micro
      - t3.small
    ConstraintDescription: EC2 instance types supported by AWS Sandbox

Mappings:
  RegionMap:
    us-east-1:
      AMI: ami-0c02fb55956c7d316
    us-east-2:
      AMI: ami-0fb653ca2d3203ac1
    us-west-1:
      AMI: ami-0d382e80be7ffdae5
    us-west-2:
      AMI: ami-083ac7c7ecf9bb9b0
    eu-west-1:
      AMI: ami-0c1c30571d2dae5c9
    eu-central-1:
      AMI: ami-0dcc0ebde7b2e00db
    ap-southeast-1:
      AMI: ami-0fa377108253bf620
    ap-northeast-1:
      AMI: ami-0d52744d6551d851e

Resources:

  SanteriVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCIDR
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: "Enable SSH, HTTP, and HTTPS access"
      VpcId: !Ref SanteriVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          CidrIp: 0.0.0.0/0
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref SanteriVPC
      InternetGatewayId: !Ref InternetGateway

  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 0, !GetAZs '' ]
      CidrBlock: !Ref PublicSubnet1CIDR
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Subnet (AZ1)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 1, !GetAZs  '' ]
      CidrBlock: !Ref PublicSubnet2CIDR
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Subnet (AZ2)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  SanteriEC2:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: !Ref InstanceType
      KeyName: !Ref KeyName
      ImageId: !FindInMap [RegionMap, !Ref 'AWS::Region', AMI]
      SubnetId: !Ref PublicSubnet1
      SecurityGroupIds:
        - !Ref InstanceSecurityGroup
      UserData: !Base64 |
        #!/bin/bash
        yum update -y
        yum install -y httpd
        echo Replaced testpage Cloud Architectures - AWS - ICI010AS3AE-3003|tee /var/www/html/index.html
        chgrp -R apache /var/www/html/
        chmod -R 750 /var/www/html/
        chmod g+s /var/www/html/ #This makes sure that all future files in here will have the same rights.
        systemctl enable httpd
        systemctl start httpd
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 0, !GetAZs  '' ]
      CidrBlock: !Ref PrivateSubnet1CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Subnet (AZ1)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 1, !GetAZs  '' ]
      CidrBlock: !Ref PrivateSubnet2CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Subnet (AZ2)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType



  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Routes

  DefaultPublicRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGatewayAttachment
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet1

  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet2

  PrivateRouteTable1:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Routes (AZ1)


  PrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      SubnetId: !Ref PrivateSubnet1

  PrivateRouteTable2:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Routes (AZ2)

  PrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable2
      SubnetId: !Ref PrivateSubnet2

  PublicNACL:
    Type: AWS::EC2::NetworkAcl
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType
  SSHRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 100
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 22
        To: 22
  HTTPSRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 110
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 443
        To: 443
  HTTPRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 120
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 80
        To: 80

  PublicInBackRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 121
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 1024
        To: 65535

  PublicOutboundSSH:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 100
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 1024
        To: 65535
      Egress: true
  PublicOutboundHTTP:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 90
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 80
        To: 80
      Egress: true
  PublicOutboundHTTPS:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 91
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 443
        To: 443
      Egress: true
  PublicOutboundDNS:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 92
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 53
        To: 53
      Egress: true

  PublicSubnet1NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      NetworkAclId: !Ref PublicNACL
  PublicSubnet2NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      NetworkAclId: !Ref PublicNACL

  PrivateNACL:
    Type: AWS::EC2::NetworkAcl
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType
  PrivateSubnet1NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      NetworkAclId: !Ref PrivateNACL
  PrivateSubnet2NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      NetworkAclId: !Ref PrivateNACL
  PrivateSSHInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 100
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 22
        To: 22
      Egress: false
  PrivateHTTPSInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 110
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 443
        To: 443
      Egress: false
  PrivateHTTPInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 120
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 80
        To: 80
      Egress: false
  PrivateDenyAllInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 200
      Protocol: -1
      RuleAction: deny
      CidrBlock: 0.0.0.0/0
      Egress: false
  PrivateAllowAllOutbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 100
      Protocol: -1
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      Egress: true

  NoIngressSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: "no-ingress-sg"
      GroupDescription: "Security group with no ingress rule"
      VpcId: !Ref SanteriVPC

Outputs:
  VPC:
    Description: A reference to the created VPC
    Value: !Ref SanteriVPC

  PublicSubnets:
    Description: A list of the public subnets
    Value: !Join [ ",", [ !Ref PublicSubnet1, !Ref PublicSubnet2 ]]

  PrivateSubnets:
    Description: A list of the private subnets
    Value: !Join [ ",", [ !Ref PrivateSubnet1, !Ref PrivateSubnet2 ]]

  PublicSubnet1:
    Description: A reference to the public subnet in the 1st Availability Zone
    Value: !Ref PublicSubnet1

  PublicSubnet2:
    Description: A reference to the public subnet in the 2nd Availability Zone
    Value: !Ref PublicSubnet2

  PrivateSubnet1:
    Description: A reference to the private subnet in the 1st Availability Zone
    Value: !Ref PrivateSubnet1

  PrivateSubnet2:
    Description: A reference to the private subnet in the 2nd Availability Zone
    Value: !Ref PrivateSubnet2

  NoIngressSecurityGroup:
    Description: Security group with no ingress rule
    Value: !Ref NoIngressSecurityGroup

  InstanceId:
    Description: 'Instance ID of the Linux VM'
    Value: !Ref SanteriEC2
  PublicIP:
    Description: 'Public IP address of the Linux VM'
    Value: !GetAtt SanteriEC2.PublicIp
  PublicDNS:
    Description: 'Public DNS name of the Linux VM'
    Value: !GetAtt SanteriEC2.PublicDnsName
  SSHCommand:
    Description: 'SSH command to connect to the instance'
    Value: !Sub 'ssh -i ${KeyName}.pem ec2-user@${SanteriEC2.PublicDnsName}'

This document may be copied and modified in accordance with the GNU General Public License (version 2 or later). http://www.gnu.org/licenses/gpl.html

Based on Public Cloud Solution Architect course by Pekka Korpi-Tassi 2025.
Project Prep Tasks.

Written by Santeri Vauramo 2025.

← Back
