Task 9: NAT Gateway

Task goals:

You need to have Public Subnet and Private Subnet
Setup NAT Gateway to Public Subnet (Route Tables for Public and Private Subnets are important)
Create VM to Private Subnet and run app install CLI commands as user data
Application is downloaded from Internet even if VM is in Private Subnet
Application install must succeed
You need to find a way to access VM in Private Subnet
Run cli commands locally on VM in Private Subnet to verify install succeeded
Include screenshot about succesfull CLI test on VM to README.txt

NAT Gateway

I moved the EC2 instance to PrivateSubnet1 and created a PrivateInstanceSecurityGroup.
Created NatGateway1EIP (Elastic IP).
Created NatGateway1 in PublicSubnet1.
Created DefaultPrivateRoute1 referring to PrivateRouteTable1 and NatGateway1 with destination CIDR block 0.0.0.0/0. This gives PrivateSubnet1 access to internet through NatGateway1.
Gave EC2 instance dependencies to create the resource only after NatGateway1, DefaultPrivateRoute1, and PrivateSubnet1RouteTableAssociation are created.

These have been added to the template:

NatGateway1EIP:
Type: AWS::EC2::EIP
DependsOn: InternetGatewayAttachment
Properties:
  Domain: vpc

NatGateway1:
Type: AWS::EC2::NatGateway
Properties:
  AllocationId: !GetAtt NatGateway1EIP.AllocationId
  SubnetId: !Ref PublicSubnet1

DefaultPublicRoute:
Type: AWS::EC2::Route
DependsOn: InternetGatewayAttachment
Properties:
  RouteTableId: !Ref PublicRouteTable
  DestinationCidrBlock: 0.0.0.0/0
  GatewayId: !Ref InternetGateway

SanteriEC2:
Type: AWS::EC2::Instance
DependsOn:
  - NatGateway1
  - DefaultPrivateRoute1
  - PrivateSubnet1RouteTableAssociation
Properties:
  InstanceType: !Ref InstanceType
  KeyName: !Ref KeyName
  ImageId: !FindInMap [RegionMap, !Ref 'AWS::Region', AMI]
  SubnetId: !Ref PrivateSubnet1
  SecurityGroupIds:
  - !Ref PrivateInstanceSecurityGroup

Connecting to the EC2 instance in the private subnet

With these changes I had the stack created succesfully. Now I still have to be able to connect to the EC2 instance.

I was searching around AWS documentation for a solution. They mention using an EC2 Instance Connect Endpoint Service.

However, I want to do this in a different way. Medium.com gives good instructions how to set up a bastion host. I am going to try this.

I will use the same key pair, and same image types.
Only difference to the other EC2 instance is: name, security group, subnet, and no user data:

  BastionHost:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: !Ref InstanceType
      KeyName: !Ref KeyName
      ImageId: !FindInMap [RegionMap, !Ref 'AWS::Region', AMI]
      SubnetId: !Ref PublicSubnet1
      SecurityGroupIds:
        - !Ref InstanceSecurityGroup

Security group for the private instance:

  PrivateInstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: "Private instance security group"
      VpcId: !Ref SanteriVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          SourceSecurityGroupId: !Ref PublicInstanceSecurityGroup

How to implement

Upload the CloudFormation template “vpc-santeri-vauramo.yaml” to AWS Learner Lab Cloudshell or SandBox. I actually did this in the SandBox, since it’s much faster to start from scratch. This is handy when fixing errors and testing overall usability.
Run the following CLI commands to validate-template, create stack and keys, and hide the key from public:

aws cloudformation validate-template --template-body file://vpc-santeri-vauramo.yaml

aws ec2 create-key-pair --key-name learner-vm-key --query 'KeyMaterial' --output text > learner-vm-key.pem
chmod 400 learner-vm-key.pem
aws cloudformation create-stack --stack-name SanteriVPC --template-body file://vpc-santeri-vauramo.yaml --capabilities CAPABILITY_NAMED_IAM CAPABILITY_AUTO_EXPAND --parameters ParameterKey=KeyName,ParameterValue=learner-vm-key ParameterKey=EnvironmentName,ParameterValue=Production

Wait for stack to be created.
Check the IPv4 addesses of the instances in the AWS GUI console (BastionHost public IP, SanteriEC2 private IP).
Start SSH authN agent, load key to the agent.
SSH to BastionHost with -A (agent forwarding) –> SSH to SanteriEC2:

eval $(ssh-agent)
ssh-add ~/learner-vm-key.pem
ssh -A ec2-user@BastionHost-public-ip
ssh ec2-user@SanterEC2-private-ip

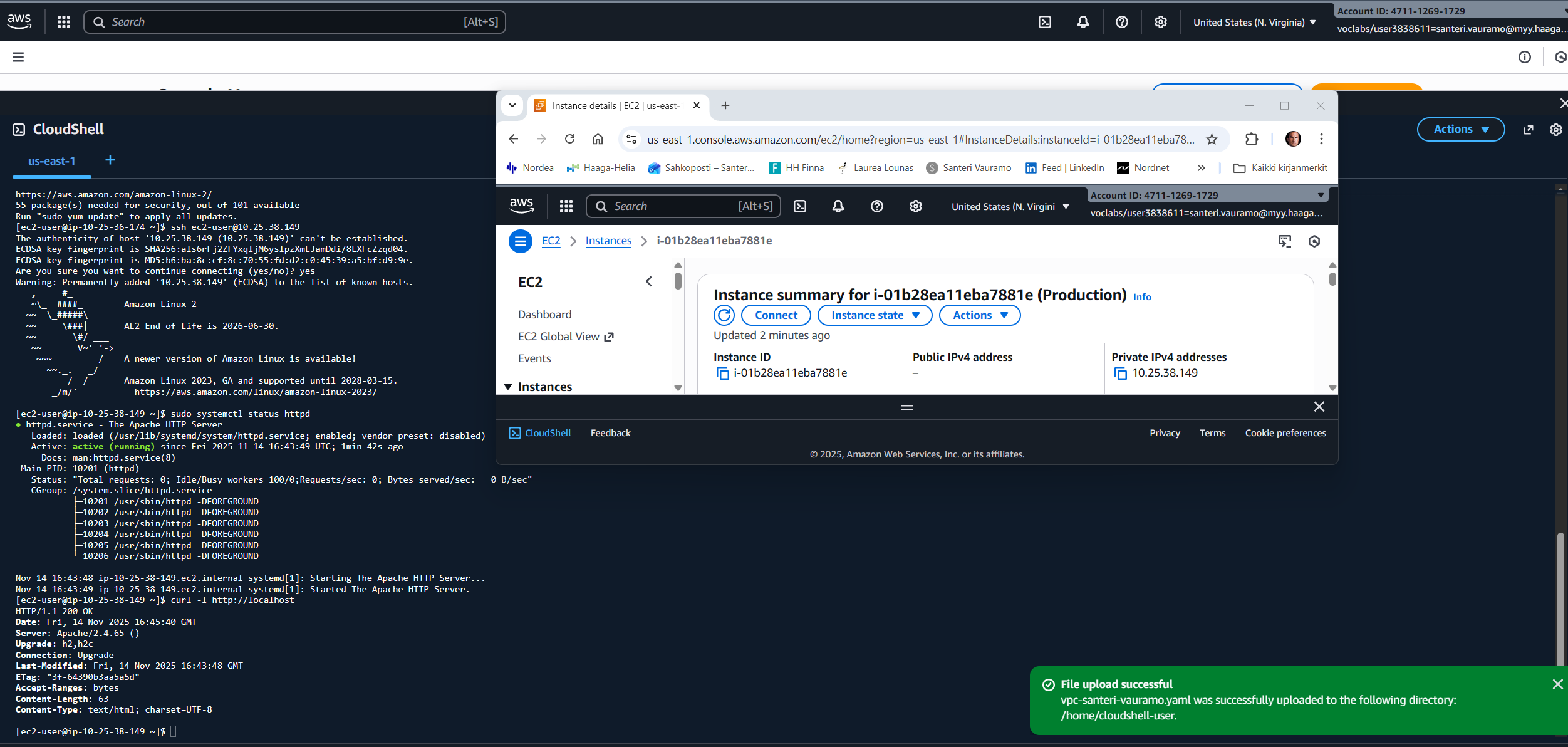

Test Apache status and curl localhost header to see that the installation was succesful:

sudo systemctl status httpd
curl -I http://localhost

The template file:

AWSTemplateFormatVersion: '2010-09-09'
Description:  Task 9

Parameters:
  EnvironmentName:
    Description: VPC Networking
    Type: String

  LatestAmiId:
    Description: The latest Amazon Linux 2 AMI from the Parameter Store
    Type: 'AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>'
    Default: '/aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2'

  VpcCIDR:
    Type: String
    Default: 10.25.36.0/22

  PublicSubnet1CIDR:
    Type: String
    Default: 10.25.36.0/24

  PublicSubnet2CIDR:
    Type: String
    Default: 10.25.37.0/24

  PrivateSubnet1CIDR:
    Type: String
    Default: 10.25.38.0/24

  PrivateSubnet2CIDR:
    Type: String
    Default: 10.25.39.0/24

  Course:
    Type: String
    Default: 'Cloud Architectures - AWS'

  ImplementationID:
    Type: String
    Default: 'ICI010AS3AE-3003'

  Task:
    Type: String
    Default: 'Task 9'

  Learner:
    Type: String
    Default: 'Santeri'

  KeyName:
    Type: AWS::EC2::KeyPair::KeyName
    Default: learner-vm-key

  DeploymentType:
    Type: String
    Default: 'Console'
    AllowedValues:
      - Console
      - CLI
      - IaC
      - IaC with Configuration Management
      - CI/CD
      - CI/CD with Configuration Management
    ConstraintDescription: Type of deployment of the resources

  InstanceType:
    Description: EC2 instance type
    Type: String
    Default: t3.nano
    AllowedValues:
      - t2.nano
      - t2.micro
      - t2.small
      - t3.nano
      - t3.micro
      - t3.small
    ConstraintDescription: EC2 instance types supported by AWS Sandbox

Mappings:
  RegionMap:
    us-east-1:
      AMI: ami-0c02fb55956c7d316
    us-east-2:
      AMI: ami-0fb653ca2d3203ac1
    us-west-1:
      AMI: ami-0d382e80be7ffdae5
    us-west-2:
      AMI: ami-083ac7c7ecf9bb9b0
    eu-west-1:
      AMI: ami-0c1c30571d2dae5c9
    eu-central-1:
      AMI: ami-0dcc0ebde7b2e00db
    ap-southeast-1:
      AMI: ami-0fa377108253bf620
    ap-northeast-1:
      AMI: ami-0d52744d6551d851e

Resources:

  SanteriVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCIDR
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PublicInstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: "Enable SSH, HTTP, and HTTPS access"
      VpcId: !Ref SanteriVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          CidrIp: 0.0.0.0/0
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0

  PrivateInstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: "Private instance security group"
      VpcId: !Ref SanteriVPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          SourceSecurityGroupId: !Ref PublicInstanceSecurityGroup
      SecurityGroupEgress:
        - IpProtocol: -1
          CidrIp: 0.0.0.0/0

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref SanteriVPC
      InternetGatewayId: !Ref InternetGateway

  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 0, !GetAZs '' ]
      CidrBlock: !Ref PublicSubnet1CIDR
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Subnet (AZ1)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  BastionHost:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: !Ref InstanceType
      KeyName: !Ref KeyName
      ImageId: !FindInMap [RegionMap, !Ref 'AWS::Region', AMI]
      SubnetId: !Ref PublicSubnet1
      SecurityGroupIds:
        - !Ref PublicInstanceSecurityGroup
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType


  NatGateway1EIP:
    Type: AWS::EC2::EIP
    DependsOn: InternetGatewayAttachment
    Properties:
      Domain: vpc

  NatGateway1:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGateway1EIP.AllocationId
      SubnetId: !Ref PublicSubnet1

  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 1, !GetAZs  '' ]
      CidrBlock: !Ref PublicSubnet2CIDR
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Subnet (AZ2)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType



  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 0, !GetAZs  '' ]
      CidrBlock: !Ref PrivateSubnet1CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Subnet (AZ1)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType





  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref SanteriVPC
      AvailabilityZone: !Select [ 1, !GetAZs  '' ]
      CidrBlock: !Ref PrivateSubnet2CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Subnet (AZ2)
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Public Routes

  DefaultPublicRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGatewayAttachment
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet1

  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet2

  PrivateRouteTable1:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC

  DefaultPrivateRoute1:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway1

  PrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable1
      SubnetId: !Ref PrivateSubnet1

  SanteriEC2:
    Type: AWS::EC2::Instance
    DependsOn:
      - NatGateway1
      - DefaultPrivateRoute1
      - PrivateSubnet1RouteTableAssociation
    Properties:
      InstanceType: !Ref InstanceType
      KeyName: !Ref KeyName
      ImageId: !FindInMap [RegionMap, !Ref 'AWS::Region', AMI]
      SubnetId: !Ref PrivateSubnet1
      SecurityGroupIds:
        - !Ref PrivateInstanceSecurityGroup
      UserData: !Base64 |
        #!/bin/bash
        yum update -y
        yum install -y httpd
        echo "Replaced testpage Cloud Architectures - AWS - ICI010AS3AE-3003" | tee /var/www/html/index.html
        chgrp -R apache /var/www/html/
        chmod -R 750 /var/www/html/
        chmod g+s /var/www/html/ #This makes sure that all future files in here will have the same rights.
        systemctl enable httpd
        systemctl start httpd
      Tags:
        - Key: Name
          Value: !Ref EnvironmentName
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType

  PrivateRouteTable2:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName} Private Routes (AZ2)

  PrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable2
      SubnetId: !Ref PrivateSubnet2

  PublicNACL:
    Type: AWS::EC2::NetworkAcl
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType
  SSHRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 100
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 22
        To: 22
  HTTPSRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 110
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 443
        To: 443
  HTTPRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 120
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 80
        To: 80
  PublicInBackRule:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 121
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 1024
        To: 65535
  PublicOutboundSSH:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 80
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 1024
        To: 65535
      Egress: true
  PublicOutboundHTTP:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 90
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 80
        To: 80
      Egress: true
  PublicOutboundHTTPS:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 91
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 443
        To: 443
      Egress: true
  PublicOutboundDNS:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 92
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 53
        To: 53
      Egress: true
  PublicOutboundSSHToPrivate:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 95
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.38.0/24
      PortRange:
        From: 22
        To: 22
      Egress: true
  PublicOutboundEphemeralToPrivate:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PublicNACL
      RuleNumber: 96
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.38.0/24
      PortRange:
        From: 1024
        To: 65535
      Egress: true

  PublicSubnet1NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      NetworkAclId: !Ref PublicNACL
  PublicSubnet2NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      NetworkAclId: !Ref PublicNACL

  PrivateNACL:
    Type: AWS::EC2::NetworkAcl
    Properties:
      VpcId: !Ref SanteriVPC
      Tags:
        - Key: AccountId
          Value: !Ref "AWS::AccountId"
        - Key: Region
          Value: !Ref "AWS::Region"
        - Key: StackName
          Value: !Ref AWS::StackName
        - Key: Course
          Value: !Ref Course
        - Key: ImplementationID
          Value: !Ref ImplementationID
        - Key: Learner
          Value: !Ref Learner
        - Key: Task
          Value: !Ref Task
        - Key: DeploymentType
          Value: !Ref DeploymentType
  PrivateSubnet1NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      NetworkAclId: !Ref PrivateNACL
  PrivateSubnet2NACLAssociation:
    Type: AWS::EC2::SubnetNetworkAclAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      NetworkAclId: !Ref PrivateNACL

  PrivateEphemeralPortsInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 90
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 1024
        To: 65535
      Egress: false
  PrivateSSHInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 100
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 22
        To: 22
      Egress: false
  PrivateHTTPSInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 110
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 443
        To: 443
      Egress: false
  PrivateHTTPInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 120
      Protocol: 6
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      PortRange:
        From: 80
        To: 80
      Egress: false
  PrivateDenyAllInbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 200
      Protocol: -1
      RuleAction: deny
      CidrBlock: 0.0.0.0/0
      Egress: false
  PrivateAllowAllOutbound:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 95
      Protocol: -1
      RuleAction: allow
      CidrBlock: 10.25.36.0/22
      Egress: true
  PrivateOutboundToInternet:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 80
      Protocol: -1
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      Egress: true
  PrivateEphemeralReturn:
    Type: AWS::EC2::NetworkAclEntry
    Properties:
      NetworkAclId: !Ref PrivateNACL
      RuleNumber: 130
      Protocol: 6
      RuleAction: allow
      CidrBlock: 0.0.0.0/0
      PortRange:
        From: 1024
        To: 65535
      Egress: false

  NoIngressSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: "no-ingress-sg"
      GroupDescription: "Security group with no ingress rule"
      VpcId: !Ref SanteriVPC

Outputs:
  VPC:
    Description: A reference to the created VPC
    Value: !Ref SanteriVPC

  PublicSubnets:
    Description: A list of the public subnets
    Value: !Join [ ",", [ !Ref PublicSubnet1, !Ref PublicSubnet2 ]]

  PrivateSubnets:
    Description: A list of the private subnets
    Value: !Join [ ",", [ !Ref PrivateSubnet1, !Ref PrivateSubnet2 ]]

  PublicSubnet1:
    Description: A reference to the public subnet in the 1st Availability Zone
    Value: !Ref PublicSubnet1

  PublicSubnet2:
    Description: A reference to the public subnet in the 2nd Availability Zone
    Value: !Ref PublicSubnet2

  PrivateSubnet1:
    Description: A reference to the private subnet in the 1st Availability Zone
    Value: !Ref PrivateSubnet1

  PrivateSubnet2:
    Description: A reference to the private subnet in the 2nd Availability Zone
    Value: !Ref PrivateSubnet2

  NoIngressSecurityGroup:
    Description: Security group with no ingress rule
    Value: !Ref NoIngressSecurityGroup

  InstanceIdSanteriEC2:
    Description: 'Instance ID of the Linux VM'
    Value: !Ref SanteriEC2

  InstanceIdBastionHost:
    Description: 'Instance ID of the Bastion Host Linux VM'
    Value: !Ref BastionHost

This document may be copied and modified in accordance with the GNU General Public License (version 2 or later). http://www.gnu.org/licenses/gpl.html

Based on Public Cloud Solution Architect course by Pekka Korpi-Tassi 2025.
Project Prep Tasks.

Written by Santeri Vauramo 2025.

← Back
